Sprinkler Head Went Off in Our Tysons Office: The Commercial Water Damage Timeline
- Fairfax Restoration Crew
An accidental fire sprinkler activation in a Tysons VA office building is one of the most disruptive commercial water events in the Fairfax County market. The volume of water released, the speed at which it distributes above suspended ceiling assemblies, and the business continuity implications combine to make the first hour after activation the most consequential period in the entire restoration timeline.
The Physics: What Actually Happens When a Sprinkler Head Activates

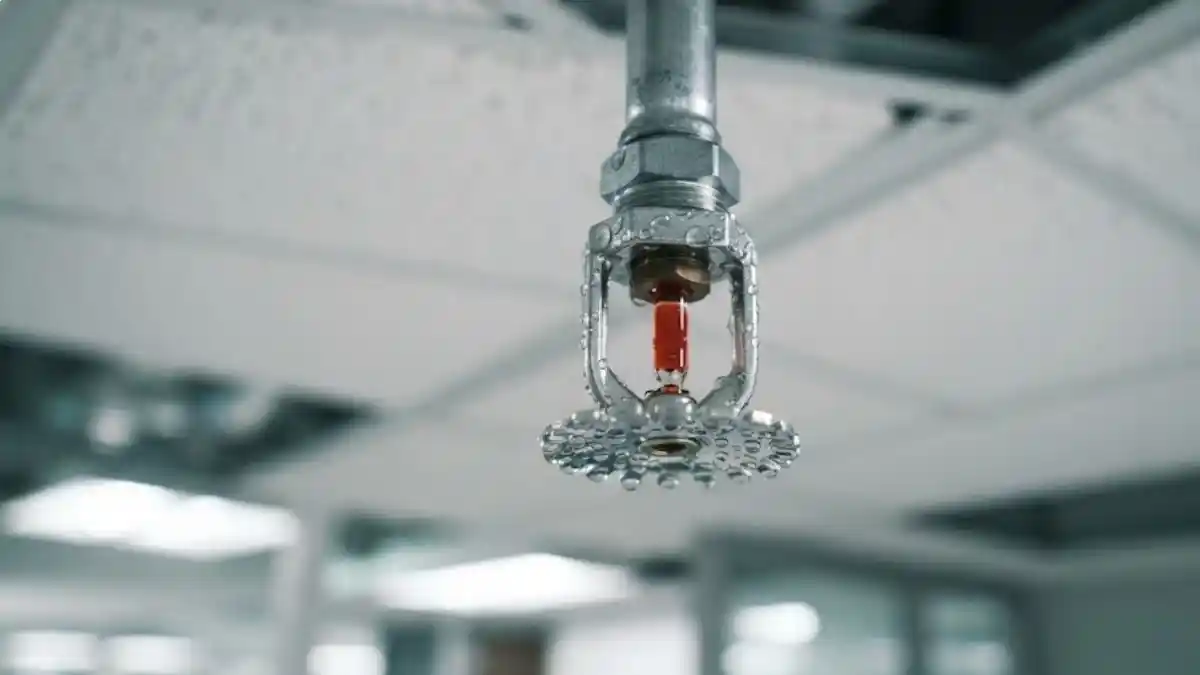

A commercial wet-pipe sprinkler head activates when its heat-sensitive element (a fusible link or glass bulb) reaches its rated temperature - typically 135 to 165 degrees Fahrenheit for standard heads. Once activated, the head releases water continuously from the building's wet-pipe distribution system at a flow rate of 20 to 40 gallons per minute, depending on the head type and system pressure. This is not a spray; it is a sustained stream directed by the deflector plate across a coverage area of 100 to 200 square feet per head.
In an open-plan Tysons office with a standard suspended ceiling grid, that water does not pool under the head. It flows onto the suspended ceiling tiles, soaks through them or follows the grid channels, and accumulates above the ceiling in the plenum space - spreading laterally across a much wider area than the floor projection below the activated head. By the time the ceiling tiles begin to discolor or sag, the water above them may have spread 20 to 30 feet from the source. When a tile finally fails and drops water to the floor, it reveals not the location of the head, but the low point of the ceiling where water accumulated last.
| Time After Activation | Estimated Water Volume (single head) | What Is Happening |
|---|---|---|
| 1 minute | 20-40 gallons | Water entering ceiling plenum; no floor-level indication yet |
| 5 minutes | 100-200 gallons | Ceiling tiles saturated across wide radius; first drips reaching floor |
| 10 minutes | 200-400 gallons | Multiple ceiling tile failures; standing water beginning at floor level |
| 20 minutes (if not shut off) | 400-800 gallons | Structural saturation of ceiling assembly; potential grid failure |
The First Five Minutes - What to Do
Locate and close the sprinkler supply valve. In most Tysons office buildings, this is in the fire suppression control room in the mechanical level - your building engineer can close it faster than any tenant. If you cannot reach the building engineer, call 911; the fire department will close the valve. Do not wait to confirm there is no fire before closing the valve - if the head activated from heat rather than flame, the absence of smoke is already your confirmation.
Simultaneously: evacuate the affected area (ceiling grid failure is a falling-object hazard), shut off any electrical circuits that may be affected by the water intrusion (if the electrical panel is in an unaffected area and the circuit breakers are safely accessible), and call (571) 741-6292 for commercial extraction. Notify your property manager and your commercial insurance carrier in parallel.
Why You Cannot Just Run HVAC to Dry It
Running the HVAC system in the affected area after a sprinkler discharge does two things you do not want: it circulates humid air across all surfaces in the air-handler zone, slowing evaporation from the structural materials while distributing moisture to previously unaffected areas; and if the water has reached any HVAC components - return-air plenums, flexible duct connectors, or supply registers - it can distribute contamination and mold spores through the duct system before any visible mold is present. Shut the HVAC off in the affected zone immediately and leave it off until moisture mapping is complete.
Above-Ceiling Moisture Mapping - The Step That Determines Scope
The restoration scope for a Tysons office sprinkler discharge is almost entirely driven by what is above the ceiling grid. Moisture mapping using thermal imaging and calibrated meters - performed in the plenum above the tiles, not just at floor level - establishes which portions of the ceiling assembly, insulation, and structural elements are saturated. Reinstalling ceiling tiles over wet insulation batt without drying it creates a certain mold event in 10 to 14 days. The moisture map drives both the tile-removal scope and the drying zone layout.
Use our Sprinkler Discharge Volume Calculator to estimate the total water volume based on the number of activated heads and the response time. This figure is useful for both logistics planning and business-interruption documentation.
Business Continuity Documentation
A Tysons office closure for commercial drying is a quantifiable business impact. Your commercial property policy may include business-interruption coverage that compensates for revenue lost during the closure period. The BI claim requires documentation of the closure timeline, which our daily moisture logs and scope decisions provide, and of the revenue impact, which your accountant and business broker will calculate. See Water Damage Insurance Claims for the full commercial documentation process and use our Business Water Downtime Cost Calculator for an initial estimate. Call (571) 741-6292 for sprinkler discharge events in Tysons and the surrounding Fairfax County commercial corridor.
